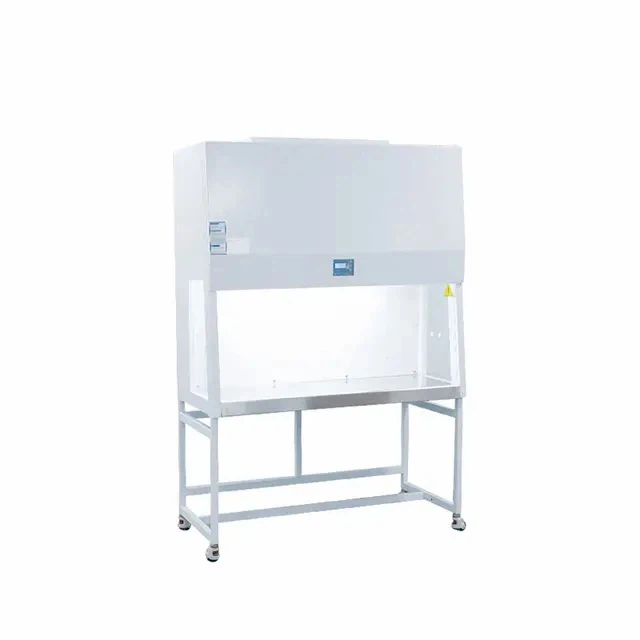

The Horizontal Laminar Flow Hood is a high-performance protective system designed to create a sterile, particle-free workspace, making it indispensable for sensitive laboratory applications. By utilizing horizontal laminar airflow with single-side operation, it ensures a continuous flow of HEPA-filtered air across the work surface, effectively safeguarding samples from contamination. Constructed with premium cold-rolled steel featuring a welded structure and an electrostatic powder-coated finish, the hood offers exceptional stability and long-term durability. The SUS304 stainless steel work surface provides both a sleek appearance and excellent corrosion resistance, while 5mm tempered glass panels on the front and sides enhance safety. Its integrated caster wheels enable smooth mobility and secure placement, ensuring adaptability to various laboratory setups.
Equipped with a high-definition LCD screen, the Horizontal Laminar Flow Hood delivers real-time data on airflow velocity, timers, UV lamp runtime, and HEPA filter lifespan, allowing for intuitive operation. Additional features include scheduling capabilities for the UV lamp and fan, as well as a unit conversion function that enables seamless switching between PA and m/s. The hood also incorporates UV lighting, LED illumination, and waterproof sockets to meet diverse experimental requirements. A robust alarm system, with alerts for high filter pressure, filter replacement, and low airflow, guarantees consistent performance. Enhanced safety is provided through interlocking functions, preventing simultaneous operation of the UV lamp, fan, and lighting when conditions are unsafe. With its advanced functionality and safety-first design, the Horizontal Laminar Flow Hood is an optimal choice for maintaining clean and controlled laboratory environments.
Technical Parameters
|
Model |
BBS-H1300-I |

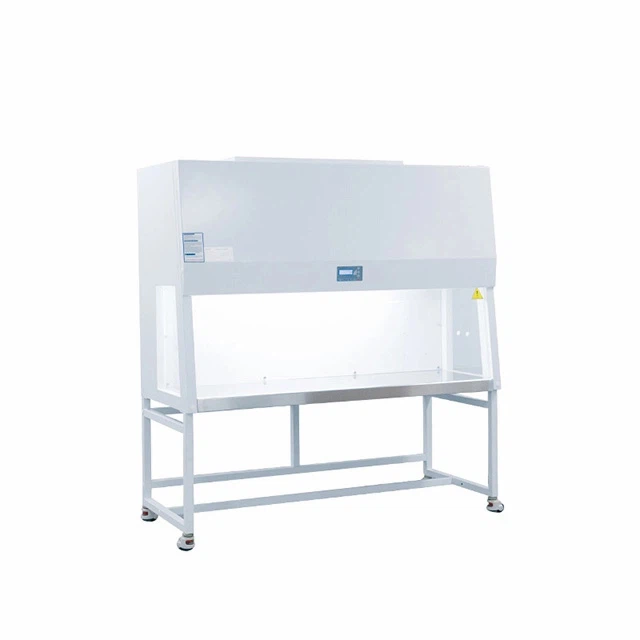

BBS-H1800-I |
|
External Size(W*D*H) |
1300*820*1940mm |
1800*820*1940mm |
|
Internal Size(W*D*H) |
1200*550*570mm |
1700*550*570mm |
|
Work Surface Height |
750mm |
|
|
Max Opening |
430mm |
|
|
Display |
LCD display |
|
|
Airflow Velocity |
0.30~0.5m/s |
|
|
Material |
Working area: 304 stainless steel Main body: 1.0mm cold-rolled steel with anti-bacteria powder coating |
|
|
Pre-Filter |
Polyester fiber |
|
|
HEPA Filter |
One, 99.995% efficiency at 0.3μm |
|
|
Front Window |
Motorized |
|
|
Noise |
≤65dB(A) |
|
|
Illumination |
≥300lx |
|
|
Vibration |
≤5μm(rms) |
|
|
Safety |
Colonies Number≤0.5CFU/30min |
|
|
Clean Level |
ISO level 5(Class 100) |
|
|
Waterproof Sockets |
Two sockets, Max. Power: 1000W |
|
|
Power Supply |
AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) |
|
|
Consumption |
1400W |
1500W |
|
LED Lamp |
12W*1 |
16W*2 |
|
UV Lamp |
30W*1 |
30W*1 |
|
Standard Accessories |
Base stand, LED lamp, UV lamp, Waterproof socket*2.Gas tap |
|
|
Package Size(W*D*H) |
1450*1060*1540mm |
1940*1060*1540mm |
|
Gross Weight |
255kg |
325kg |
