The Horizontal Airflow Hood is designed to provide a stable, particle-free working environment for laboratories that require clean bench operations. By using a horizontal laminar airflow system, the unit delivers continuous HEPA-filtered air across the workspace, forming a protective barrier that prevents airborne contaminants from entering the operating area. This structure ensures a consistent ISO-class clean level, making it suitable for microbiology workflows, sample preparation, electronic component handling, and other precision operations.
Inside the chamber, the Horizontal Airflow Hood adopts a streamlined interior with smooth, easy-clean surfaces. The stainless-steel work zone is shaped to reduce turbulence and maintain a uniform airflow pattern. A high-efficiency HEPA filter is positioned at the rear of the unit, enabling the horizontal airflow to cover the full width of the workspace before exiting toward the user side. This airflow design minimizes particle accumulation and provides a stable environment for sensitive procedures.
For users who require precise monitoring, the system is equipped with a digital control interface that allows real-time supervision of airflow speed, filter status, and system operation. Low-noise fans, automatic speed compensation, and adjustable lighting further support long working periods without fatigue. Safety features such as pressure alarms and filter life reminders help ensure continuous, reliable performance.
With its combination of clean air delivery, ergonomic operation, and easy maintenance, the Horizontal Airflow Hood is a practical solution for laboratories focusing on high-accuracy sample processing. Whether used in research institutes, pharmaceutical R&D, or routine quality control tasks, the Horizontal Airflow Hood offers stable protection and consistent work performance.
Technical Parameters
|
Model |
BBS-H1300 |
BBS-H1800 |
|
External Size(W*D*H) |
1300*820*2040mm |
1800*820*2070mm |
|
Internal Size(W*D*H) |
1200*500*570mm |
1700*500*570mm |
|
Work Surface Height |
750mm |
|
|
Display |
LCD display |
|
|
Airflow Velocity |
Average of 0.3~0.5m/s |
|
|
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|
|
Work Table: 304 stainless steel |
||
|
Side and Front Window: 5mm toughened glass, anti-UV |
||
|
Pre-filter |
Polyester fiber, washable |
|
|
HEPA Filter |
99.995% efficiency at 0.3μm |
|
|
Noise |
<65dB |
|
|
Front Window |
Motorized |
|
|
Max Opening |
430mm |
|
|
LED Lamp |
12W*1 |
16W*2 |
|
UV Lamp |
30W*1 |
30W*1 |
|
Emission of 253.7 nanometers |
||
|
Consumption |
400W |
500W |
|
Waterproof Socket |
Two, total load≤500W |
|
|
Caster |
Universal caster with leveling feet |
|
|
Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
|
|
Standard Accessory |

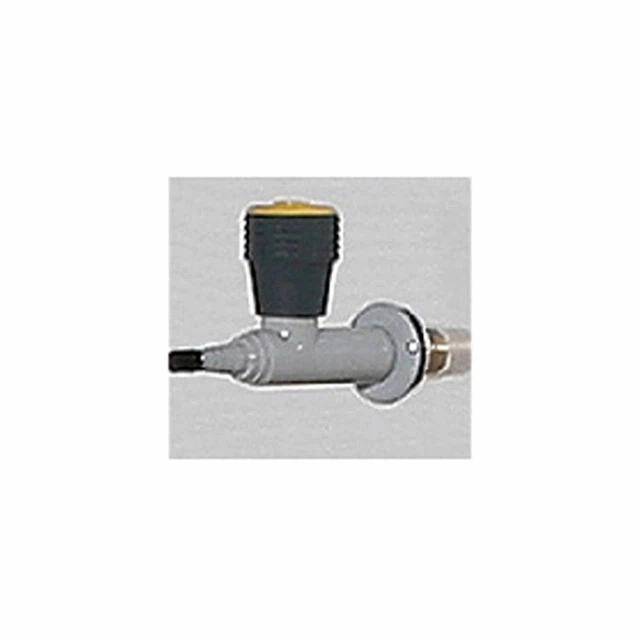

LED lamp, UV lamp*2, Base stand, Gas Tap, Waterproof socket*2, Water Tap (only for BBS-H1800). |
|
|
Optional Accessory |
Electric height adjustable base stand |
|
|
Gross Weight |
254kg |
328kg |
|
Package Size(W*D*H) |
1450*1060*1650mm |
1950*1060*1600mm |
