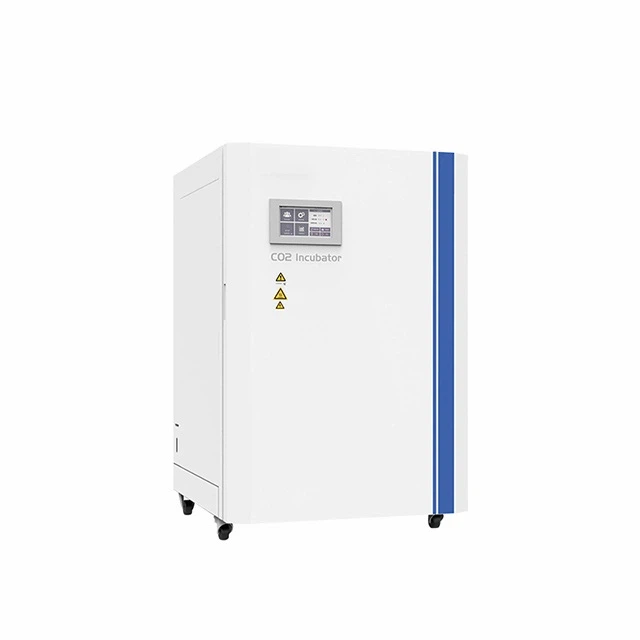

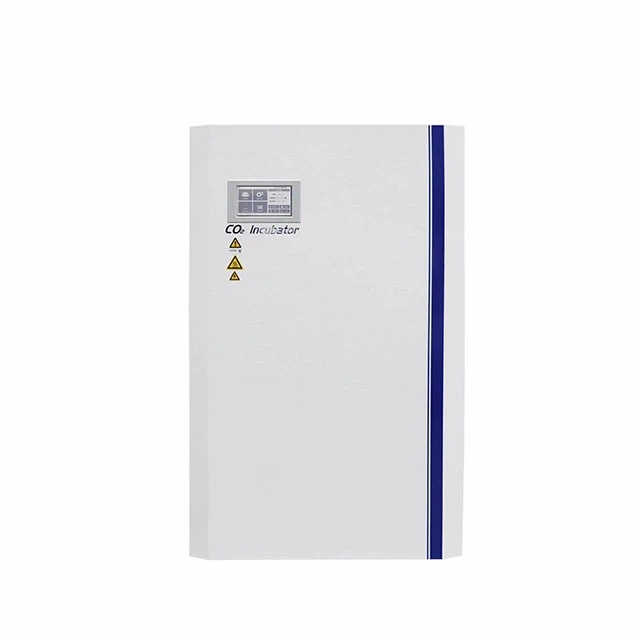

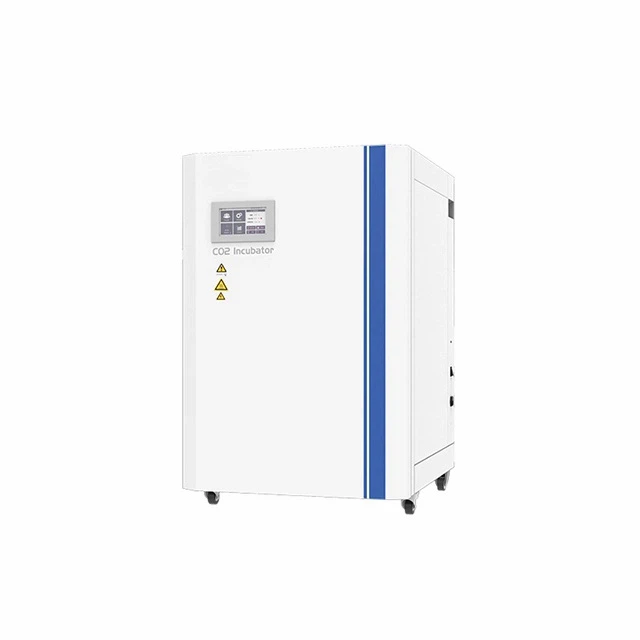

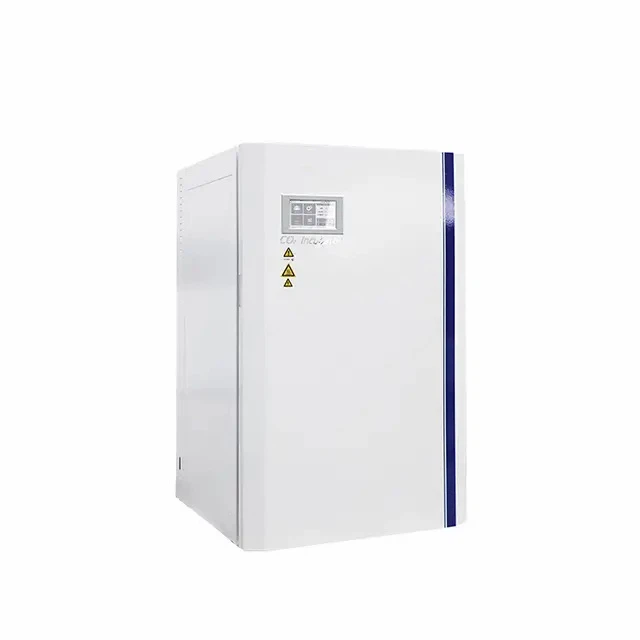

The CO2 Incubator is engineered to replicate the natural growth environment of cells and tissues, providing optimal conditions for cell culture with stable temperature (37°C), CO2 concentration (5%), pH (7.2–7.4), and high humidity (95%). Widely used in research areas such as cytology, oncology, genetics, immunology, and virus studies, this incubator is an indispensable tool for laboratories and industrial production in biochemistry, agriculture, and microbial culture. Its advanced design ensures precise control and a highly reliable environment for critical experiments.

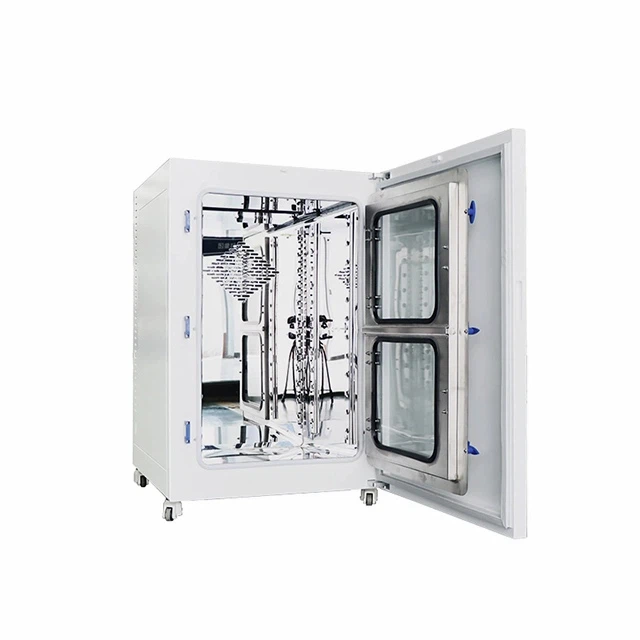

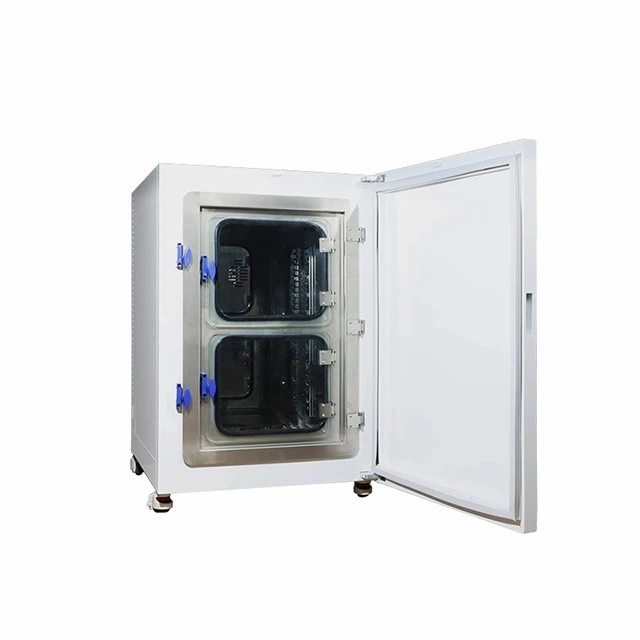

Equipped with a high-precision infrared sensor and dual-channel, dual-filter technology, the CO2 Incubator guarantees accurate CO2 regulation. The multi-door design minimizes air exchange when opened, preserving the internal environment. The interior, crafted from 304 mirror-finished stainless steel with rounded corners, allows for easy cleaning and sterilization. A 3D airflow system ensures even CO2 distribution, enhancing the accuracy of sensor readings and maintaining consistent culture conditions. The aluminum foil-wrapped silicone heating wires provide fast and uniform heating, contributing to efficient operation.
For enhanced safety and convenience, the CO2 Incubator features a high-quality HEPA filter, a durable SMC solenoid valve, and multiple protective mechanisms, including leak and overpressure protection. The built-in alarms for temperature and CO2 concentration deviations ensure constant monitoring of critical parameters. Additionally, a water tank at the bottom maintains optimal humidity, supporting superior cell and tissue cultivation conditions. This incubator combines precision, reliability, and user-friendly design to meet the highest standards of laboratory and industrial applications.
Technical Parameters
|
Model |
BJPX-C100M |
BJPX-C160M |
BJPX-C200M |
BJPX-C260M |
BJPX-C300M |
|
Type |
Medical series, air jacket |
||||
|
Sterilization Type |
90℃ moist heat sterilization |
||||
|
Capacity |
100L |
160L |
200L |
260L |
300L |
|
Temp. Sensor |
PT100 |
||||
|
Temp. Range |
RT+5~60℃ |
||||
|
Temp. Fluctuation |
±0.3℃(@37℃) |
||||
|
Temp. Uniformity |
±0.5℃(@37℃) |
||||
|
Temp. Precision |
0.1℃ |
||||
|
Timing Range |
0~999h or continuous |
||||
|
Display |
7-inch touch screen |
||||
|
CO2 Control |
IR infrared sensor with calibration certificate |
||||
|
CO2 Range |
0~20vol% |
||||
|
CO2 Uniformity |
0.2vol% |
||||
|
CO2 Control Resolution |
0.1vol% |
||||
|
Ambient Temperature and Humidity |
Ambient Temperature: 5~30℃(Recommendation: 25±2℃) Ambient Humidity: ≤80% |
||||
|
Filter |
CO2 gas filter |
||||
|
Power Supply |
Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz(External transformer) Wiring Method: plug |
||||
|
Consumption |
800W |
820W |
840W |
1380W |
1800W |
|
Shelves |
2pcs, adjustable |
3pcs, adjustable |
|||
|
Standard Accessories |
Shelves, USB interface, CO2 relief valve, CO2 gas filter |
||||
|
Optional Accessory |
Water pump |
||||
|
Internal Size(W*D*H) |
407*415*615mm |
457*470*753mm |
505*470*857mm |
557*475*997mm |
567*500*1068mm |
|
External Size(W*D*H) |
632*740*894mm |
682*796*1030mm |
730*796*1134mm |
782*805*1274mm |
792*830*1344mm |
|
Package Size(W*D*H) |
757*865*1055mm |
807*921*1190mm |
855*921*1294mm |
907*930*1434mm |
917*955*1504mm |
|
Net Weight |
95kg |
110kg |
130kg |
165kg |
185kg |
|
Gross Weight |
120kg |
135kg |
155kg |
190kg |
210kg |
