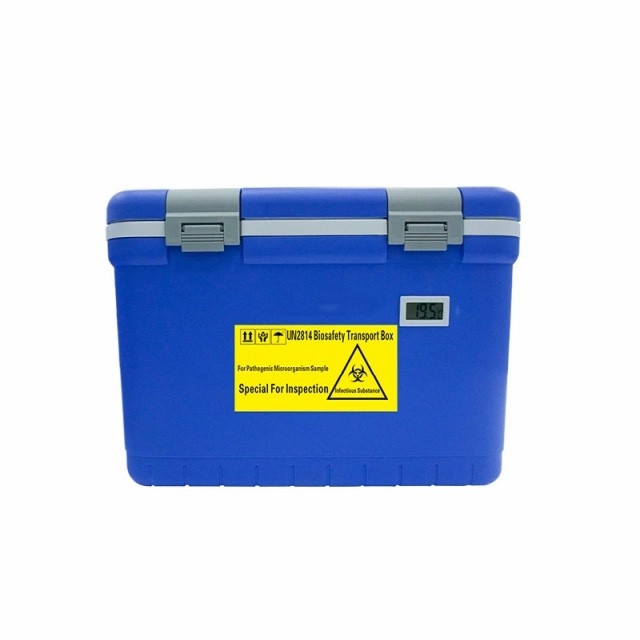

BTB-L Series Biosafety Transport Boxes: A Compliance Shield for the Sample Cold Chain
As a compliant solution for biological sample transportation, the BTB-L series (5-85L) utilizes a dual-core approach of "graded biosafety protection + intelligent temperature control" to overcome the pain points of traditional transport boxes, which offer limited protection and poor adaptability. It covers the full range of transport scenarios for pathogen samples, vaccine reagents, and clinical specimens.
Technical Breakthrough: Dual Benchmarks for Safety and Temperature Control
Graded Biosafety Protection: The transport tanks offer a pressure range of 195-2095 kPa (depending on model), meeting UN3373 biosafety transport standards and suitable for Category A/B infectious substances. A sealed structure and impact-resistant PP/PP+PE materials prevent leakage and contamination, ensuring full compliance for air and road transport.
Intelligent Cold Chain Engine: A digital thermometer monitors real-time monitoring, a PU/EPS insulation layer, and an ice crystal box combination (2-15 depending on capacity) provide a -20°C low-temperature endurance of up to 72 hours, eliminating the risk of "chain disruption" during long-distance transportation. Revolutionary Usage: Flexible Adaptability for Dual Advantages
Customized loading system: 5-85L full-capacity matrix (e.g., 5L emergency testing/85L bulk transfer), standard reagent tube racks (1-20 depending on model) + absorbent cotton + divider trays, enabling "zero-shake" transport of 1.5-2ml cryotubes/bottles to prevent sample hemolysis.

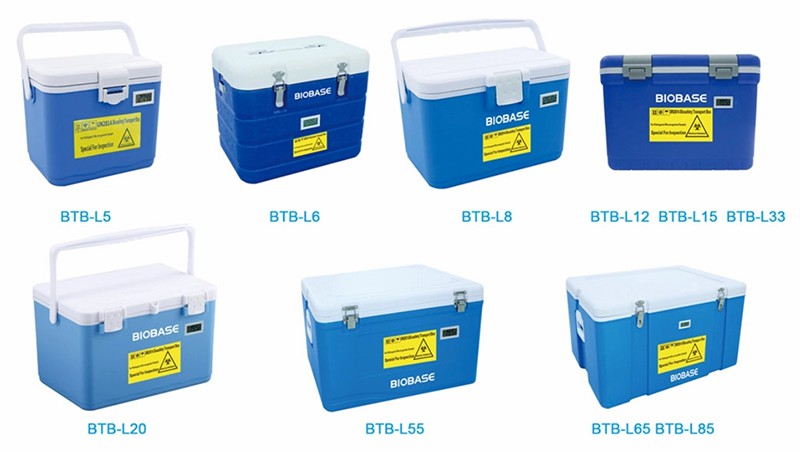

Seamless Utility: Smaller capacity (e.g., BTB-L5) is suitable for ambulance/outpatient testing, while larger capacity (e.g., BTB-L85) meets the needs of bulk transfers to CDCs/biobanks. Optional 6-20 biosafety tanks (depending on model) enable more accurate sample classification.
From COVID-19 transport to stem cell cold chain, the BTB-L series biosafety transport boxes, with their "tiered protection + intelligent temperature control + customized loading" technology, help distributors seize the "compliant and efficient" market for biotransport, serving as a "sample safety bridge" between laboratories and clinics.
Technical Parameters
|
Model |
BTB-L5 |
BTB-L6 |
BTB-L8 |
BTB-L12 |
BTB-L15 |
|
Outer Size(mm) |
266*215*225 |
330*235*275 |
335*225*205 |
425*262*305 |
425*262*305 |
|
Inner Capacity |
5L |
6L |
8L |
12L |
15L |
|
Product |
1 box |
1 box |
1 box |
1 box |
1 box |
|
Material |
PP+PE |
PP+PE |
PP |
PP |
PP |
|
Insulation Material |
PU |
PU |
EPS |
PU |
PU |
|
Gross Weight(kg) |
2.0 |
3.2 |
2.9 |
4.5 |
4.8 |
|
Packing Size(mm) |
380*270*300 |
380*270*300 |
380*270*300 |
460*355*360 |
460*355*360 |
|
Model |
BTB-L20 |
BTB-L33 |
BTB-L55 |
BTB-L65 |
BTB-L85 |
|
Outer Size(mm) |
450*330*300 |
570*310*360 |
640*395*395 |
620*485*375 |
640*520*375 |
|
Product |
1 box |
1 box |
1 box |
1 box |
1 box |
|
Material |
PP |
PP |
PP+PE |
PP+PE |
PP+PE |
|
Insulation Material |
PU |
PU |
PU |
PU |
PU |
|
Gross Weight(kg) |
5.5 |
6.5 |
9.3 |
11 |
14.3 |
|
Packing Size(mm) |
490*360*340 |
585*325*390 |
670*430*430 |
640*505*395 |
650*540*400 |
