Ozone UV Sterilization Cabinet

Ozone UV Sterilization Cabinet

The Ozone UV Sterilization Cabinet is specifically engineered to sterilize heat-sensitive items, including glassware, plastics, ceramics, mechanical equipment, production supplies, currency, non-woven fabrics, composite papers, packaging boxes, bags, tableware, containers, towels, clothing, shoes, raw materials, and other solid objects.

Add To Inquiry
Product Introduction

The Ozone UV Sterilization Cabinet is specifically engineered to sterilize heat-sensitive items, including glassware, plastics, ceramics, mechanical equipment, production supplies, currency, non-woven fabrics, composite papers, packaging boxes, bags, tableware, containers, towels, clothing, shoes, raw materials, and other solid objects. This highly versatile sterilizer is perfect for use in environments such as banks, hotels, restaurants, schools, production workshops, public places, and household settings where maintaining hygiene is essential. Equipped with high-quality sealing materials and adjustable shelves, the Ozone UV Sterilization Cabinet provides easy operation and customizable configurations to meet various user needs.

With its fully automated control system, users can easily set the sterilization time, and the unit will automatically shut down once the process is complete, ensuring optimal convenience and efficiency. The ozone sterilization technology guarantees thorough, fast, and stable disinfection, offering 360-degree coverage for maximum effectiveness. Built with a robust 304 stainless steel interior, the Ozone UV Sterilization Cabinet is highly resistant to both high temperatures and corrosion, providing a long-lasting, durable solution. Its sleek, luxurious exterior not only enhances the cabinet's aesthetic appeal but also ensures quiet operation, making it a reliable and safe choice for various sterilization needs.



01

02



Technical Parameters



Model

BJPX-SVO60

BJPX-SVO80

Capacity

70L

90L

Sterilization Method

Ozone

Ozone Concentration

>60mg/m3

Ozone Leakage

<0.16mg/m3

Sterilization Level

Medium and low level

Indicator Bacteria

Escherichia Coli, Staphylococcus Aureus, Candida Albicans

Index

Each point of the log kill value should be≥3.00

Sterilization Rate

Over 99.99%, for all kinds of bacteria, viruses, fungi

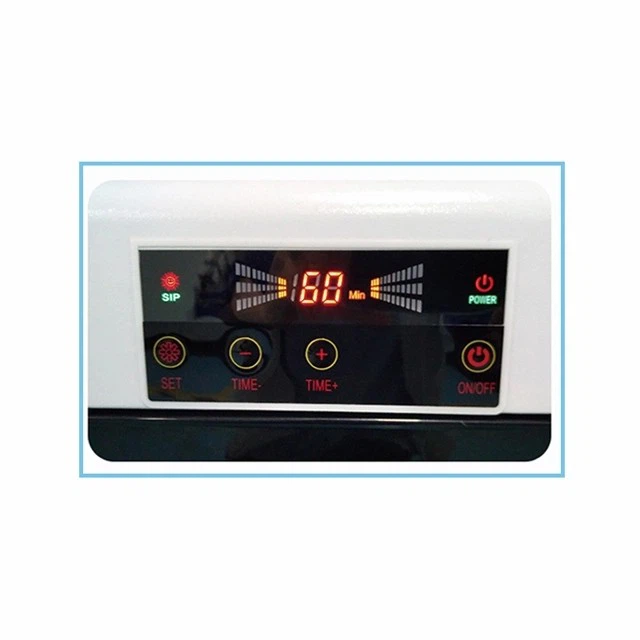

Control System

Automatic

Working Condition

(a) Ambient temperature range 5~40℃

(b) Relative humidity is not more than 85%

(c) Atmospheric pressure 70Kpa~106Kpa

(d) No flammable, corrosive gas or conductive dust around

Material

Work Zone: 304 stainless steel, 1.0mm thick

Main Body: Cold-rolled steel with coating

Power Supply

Standard: AC220V, 50Hz
Optional: AC110V, 60Hz

Consumption

20W

Altitude

<2000m

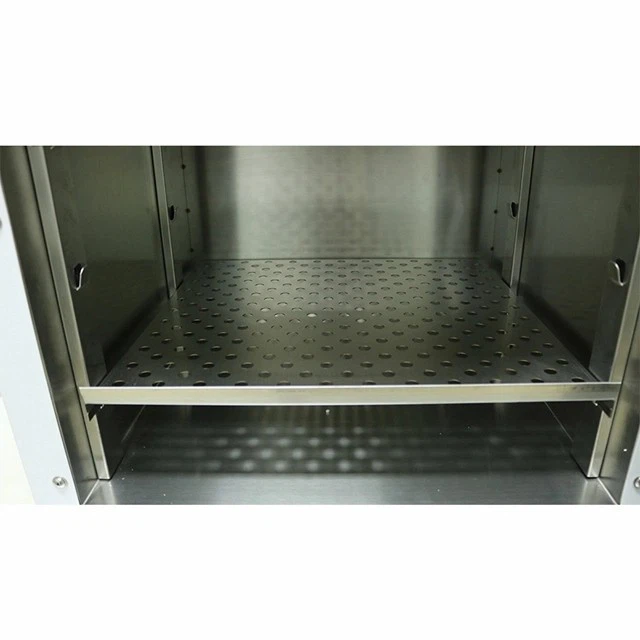

Shelf

386*394mm, Standard 2pcs, can be optional

478*394mm, Standard 2pcs, can be optional

Standard Accessories

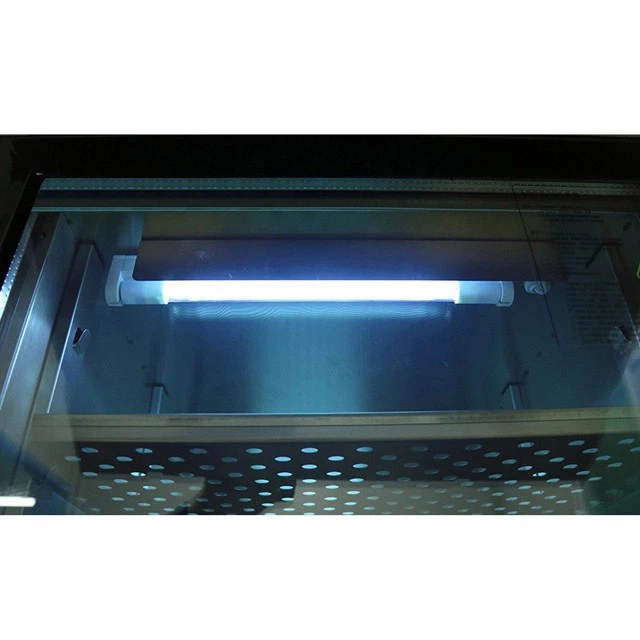

Shelf*2, UV lamp*1

External Size(W*D*H)mm

495*501*760

495*601*760

Internal Size(W*D*H)mm

398*398*452

398*498*452

Package Size(W*D*H)mm

620*620*860

726*620*860

Net Weight(kg)

35

40

Gross Weight(kg)

50

55
