The auto clinical chemistry analyzer is a high-performance diagnostic device tailored for the precise quantitative analysis of clinical samples, including serum, plasma, urine, and cerebrospinal fluid. With the ability to perform up to 600 tests per hour, this advanced system features 120 reaction cuvettes and 180 refrigerated reagent positions, ensuring efficient and reliable workflows. Designed for versatility, the auto clinical chemistry analyzer includes an optional built-in sample barcode system, which enhances sample management accuracy and streamlines laboratory operations.
Equipped with 90 sampling positions, upgradable to 120, the auto clinical chemistry analyzer is adaptable to the varying demands of modern laboratories. Its high-precision probe, featuring anti-collision and liquid level detection technology, minimizes errors and reduces sample waste, guaranteeing consistent and reliable results. This cutting-edge instrument is an ideal choice for laboratories seeking superior performance in both routine testing and high-demand clinical settings.
Technical Parameters
|
Model |
BK-600 |
|
|
Overall Performance |
Throughput |
600 tests/hour |
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
|
|
Certification |
CE, FDA, ISO9001, ISO13485 |
|
|
Sample&Reagent System |

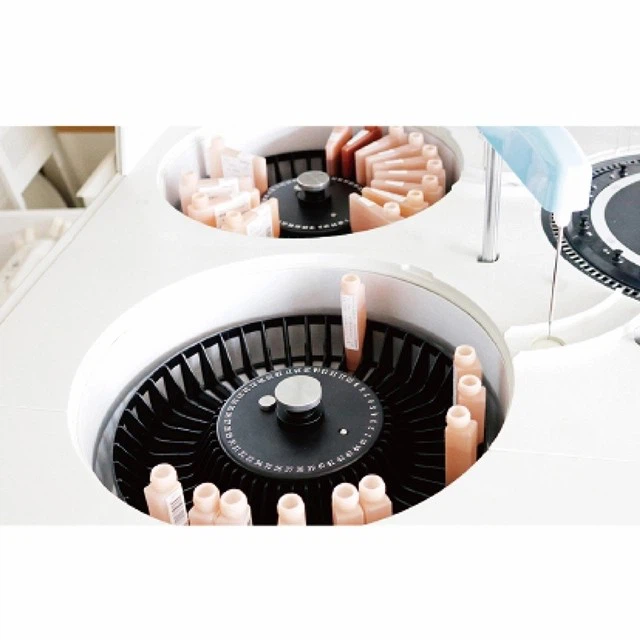

Sample Positions |
90 sample positions, built-in barcode system available |
|
Reagent Positions |
180 refrigerated reagent positions(R1: 90 & R2: 90) |
|
|
Sample Volume |
1~70μl |
|
| Reagent Volume |
10~350μl |
|
| Probe |

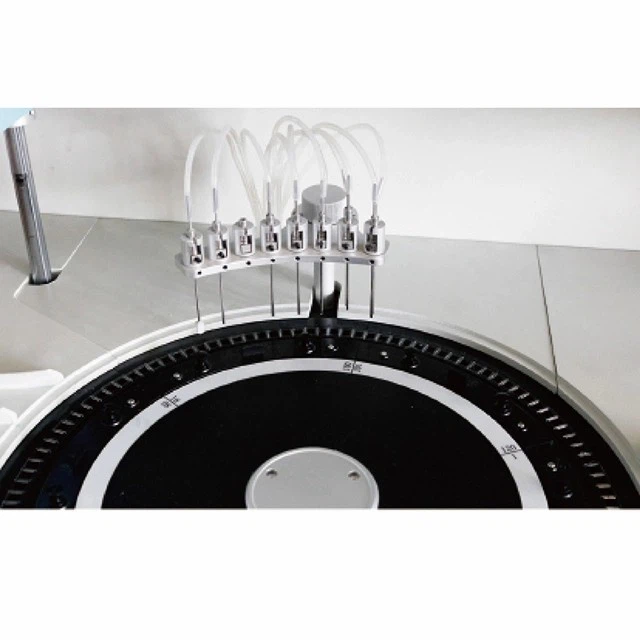

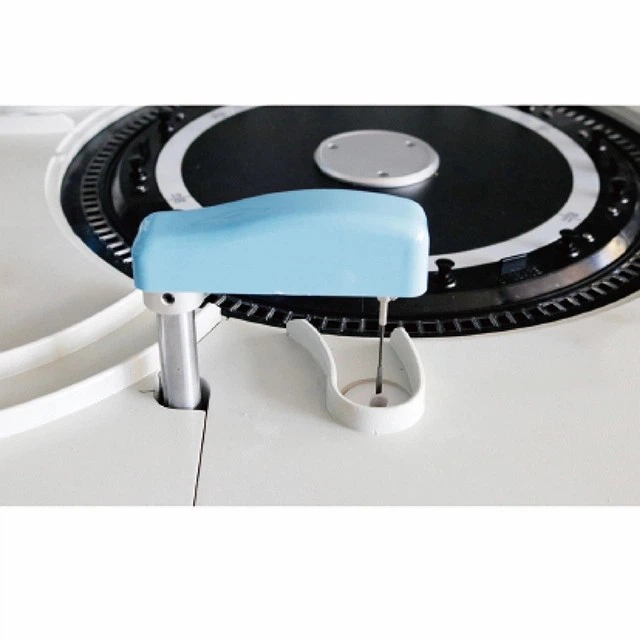

Teflon coating, with anti-collision function, liquid level detection functio |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
2~8℃ |
|
|
Reaction System |
Temperature Control |
37±0.1℃, real-time monitoring |
|
Cuvettes |
120 reusable cuvettes, optical length 6mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT Function |
YES |
|
|
Optical System |
Light Source |
12V/20W halogen lamp |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm |
|
|
Absorbance |
0~3.5Abs |
|
|
Calibration&QC |
Calibration |
1-point, 2-point and multipoint, factor, Spline, Logit-4P, Logit-5P, Polygon |
|
Quality Control |
Inserting quality control at random |
|
|
Data Management |
Software |
Windows 7/8/10 |
|
LIS System |
Available |
|
|
Interface |
TCP/IP network interface |
|
|
Printer |
External optional, multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V±10%, 50/60Hz 110V±10%, 60Hz, 800VA |
|
Temperature |
15~30℃ |
|
|
Water Consumption |
Deionized water: 20L/H |
|
|
Humidity |
40%~85% |
|
|
Size&Weight |
External Size (W*D*H) |
1170*775*1145mm |
|
Net Weight |
216kg |
|
|
Package Size (W*D*H) |
1358*938*1387mm |
|
|
Gross Weight |
281kg |
|
|
Accessory Package Size |
550*430*860mm |
|
|
Accessory Gross Weight |
20kg |
|
