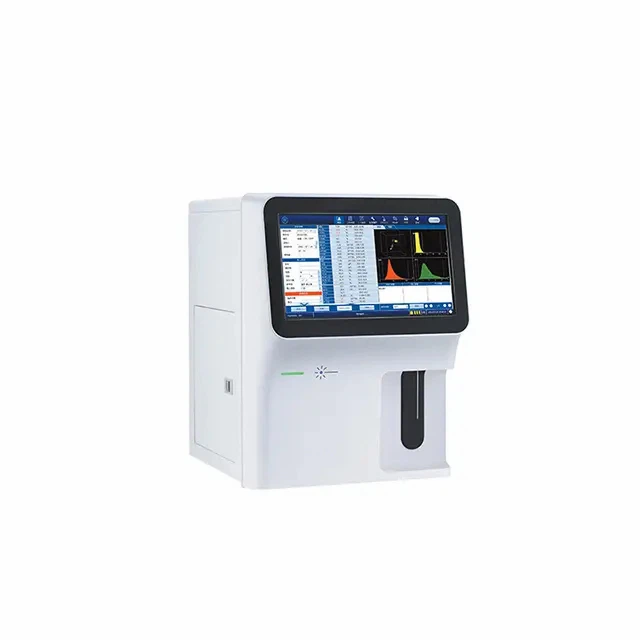

Our veterinary hematology analyzer represents the pinnacle of innovation in veterinary diagnostics, offering a highly accurate and efficient blood analysis solution for comprehensive animal care. With its advanced capabilities, the veterinary hematology analyzer ensures quick, precise results, empowering veterinarians to make timely and informed treatment decisions. Utilizing three-angle laser scatter, flow cytometry, and impedance methods, it provides exceptional RBC and PLT counting accuracy, while the 3D holographic scatter plot allows for precise WBC differential analysis. Designed with user convenience in mind, the analyzer features a large 14-inch touchscreen for seamless operation. With the capacity to store up to 100,000 results, including histograms, scatter plots, and animal information, this analyzer supports efficient data management and easy retrieval. Capable of processing 60 tests per hour, the veterinary hematology analyzer is an indispensable tool for modern veterinary clinics and animal hospitals, streamlining diagnostics and enhancing patient care.
Technical Parameters
|
Model |
BK-6310VET |
|||
|
Throughput |
60 Tests/hour |
|||
|
Sample Profile |
Dog, cat, horse, sheep, goat, camel, cow, more species coming soon |
|||
|
Assay Items |
5 parts, 25 parameters, 3 histograms, 3D scattergram |
|||
|
Principle |
Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
|||
|
Test Mode |
CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted |
|||
|
Sample Volume |
CBC+DIFF mode : ≤20ul CBC mode : ≤10ul |
|||
|
Parameters |
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# |
|||
|
Performance |
Item |
Linearity range |
Carry Over |
CV |
|
WBC |
(0~300.0x10^9)/L |
≤0.5% |
≤2.0% |
|
|
RBC |
(0~8.00x10^12)/L |
≤0.5% |
≤1.5% |
|
|
HGB |
(0~250)g/L |
≤0.5% |
≤1.5% |
|
|
PLT |
(0~3000x10^9)/L |
≤1.0% |
≤4.0% |
|
|
Sample Volume |
CBC+DIFF mode≤20μl CBC mode≤10μl |
|||
|
Storage |
100,000 results including histograms, scattergrams and patient information |
|||
|
Interface |
4 USB ports, 1LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader |
|||
|
Power Supply |
AC100~240V±10% 50/60Hz; 400VA |
|||
|
Package Size |
575*490*690mm(W*D*H) |
|||
|
Gross Weight |
46kg |
|||
|
Reagent Package Size |
330*330*330mm, 400*290*240mm, 400*290*240mm |
|||
|
Reagent Gross Weight |
22kg 2kg, 2kg |
|||
