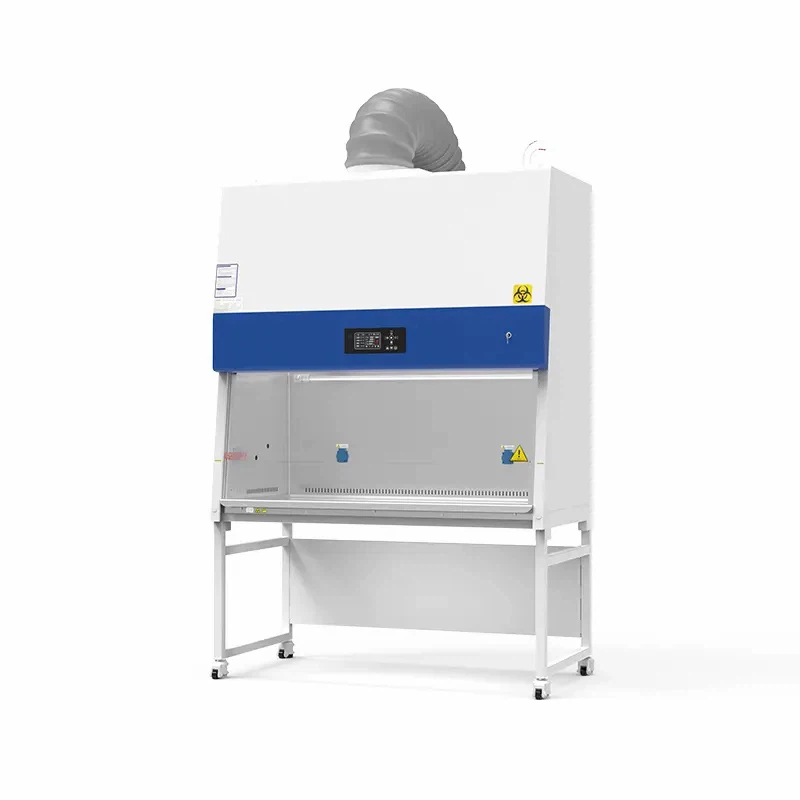

The Biological Safety Cabinet Class 2 AC Series II B2 is a cutting-edge, high-performance sealed device specifically designed for laboratories dealing with hazardous biological materials and chemicals. Unlike traditional Class II cabinets, this B2 model offers 100% complete exhaust, ensuring all potentially harmful air is safely expelled from the laboratory. This makes the Biological Safety Cabinet Class 2 the ideal choice for applications that require strict biological and chemical safety standards. Featuring an innovative design, this cabinet combines ergonomic user-friendly features with advanced technology, enhancing both safety and operational efficiency during laboratory operations.
Designed with a 10° inclined angle, this cabinet adheres to ergonomic principles, offering a wider viewing angle and more convenient operation. The three exposed side walls are crafted from high-quality 304# stainless steel with an integrated structure and 8mm rounded internal corners, ensuring easy cleaning and eliminating any dead zones. The work area benefits from a four-sided negative pressure design, providing superior protection and enhanced safety during experiments. The work surface is constructed in a basin shape, which prevents spills from entering the collection tray and makes cleanup quick and easy.
The Biological Safety Cabinet Class 2 is equipped with FOMA casters for effortless movement and leveling, offering flexibility for various laboratory configurations. The cabinet and its base are separable, with the base height customizable to suit specific space requirements. For enhanced user safety, the front window is made of double-layer laminated explosion-proof safety glass, which ensures that even if the glass breaks, it will not cause harm to the user, and the cabinet will continue to operate safely until the experiment is completed.
An advanced LCD color display dynamically shows real-time data, including airflow speed, temperature, humidity, UV light operation time, and filter status, allowing for easy monitoring of cabinet performance. The cabinet also supports multiple control options (foot-operated, touch-button, or remote control) for adjusting the glass door's height, with automatic stop features ensuring safe and convenient operation. Additionally, it includes a scheduling function for automatic control of the cabinet's startup, shutdown, and UV light disinfection cycles, improving both efficiency and ease of use.
The cabinet also features a rigorous airtightness test system, guaranteeing sealed integrity to maintain safe laboratory conditions. A comprehensive alarm system monitors critical factors like filter pressure, airflow fluctuations, and potential issues, ensuring the cabinet operates optimally at all times. The interlocking system between the fan and glass door, along with the UV light's integration with the cabinet's other functions, provides an extra layer of safety, minimizing the risk of operator error and ensuring both personnel and experiment safety.
Technical Parameters
|
Model |
BSC-1100IIB2-X |
BSC-1300IIB2-X |
BSC-1500IIB2-X |
BSC-1800IIB2-X |
|
|
External Size(W*D*H) |
1100*775*2250mm |
1300*775*2250mm |
1500*775*2250mm |
1800*775*2250mm |
|
|
Internal Size(W*D*H) |
940*600*660mm |
1150*600*660mm |
1350*600*660mm |
1625*600*660mm |
|
|
Tested Opening |
Safety height 200mm(8") |
||||
|
Max Opening |
480mm |
||||
|
Inflow Velocity |
0.53±0.025m/s |
||||
|
Downflow Velocity |
0.33±0.025m/s |
||||
|
ULPA Filter |
Two, 99.9995% efficiency at0.12μm, filter life indicator |
||||
|
Front Window |
Motorized. Two-layer laminated toughened glass≥6mm. Anti UV |
||||
|
Noise |
≤65dB |
||||
|
UV Lamp |
30W*1 |
30W*1 |
40W*1 |
40W*1 |
|
|
UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination |
|||||
|
LED Lamp |
12W*2 |
14W*2 |
16W*2 |
16W*2 |
|
|
Illumination |
≥1000Lux |
||||
|
Consumption |
1300W |
1300W |
1300W |
1300W |
|
|
Waterproof Socket |
Two, total load of two sockets: 500W |
||||
|
Display |
LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
||||
|
Control System |
Microprocessor |
||||
|
Airflow System |
0% air recirculation, 100% air exhaust |
||||
|
Visual and Audio Alarm |
Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure |
||||
|
Material |
Work Zone: 304 stainless steel |
||||
|
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|||||
|
Work Surface Height |
770mm(can be customized) |
800mm(Can be customized) |
|||
|
Caster |
Footmaster caster |
||||
|
Power Supply |
AC220V, 50/60Hz; 110V, 60Hz |
||||
|
Standard Accessory |
LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct |
||||
|
Optional Accessory |
Water and gas tap, Electric height adjustable base stand, Armrest |
||||
|
Gross Weight |
243kg; 52kg |
282kg; 64kg |
300kg; 64kg |
408kg; 64kg |
|
|
Package |
Main Body Exhaust Blower(W*D*H) |
1230*990*1840mm |
1430*990*1840mm |
1630*990*1840mm |
1930*990*1840mm |
|
930*800*700mm |
930*860*740mm |
930*860*740mm |
930*860*740mm |
||
